RKI SDM-6100 Calibration Station for GX-6100 Gas Monitors – Multiple Configurations

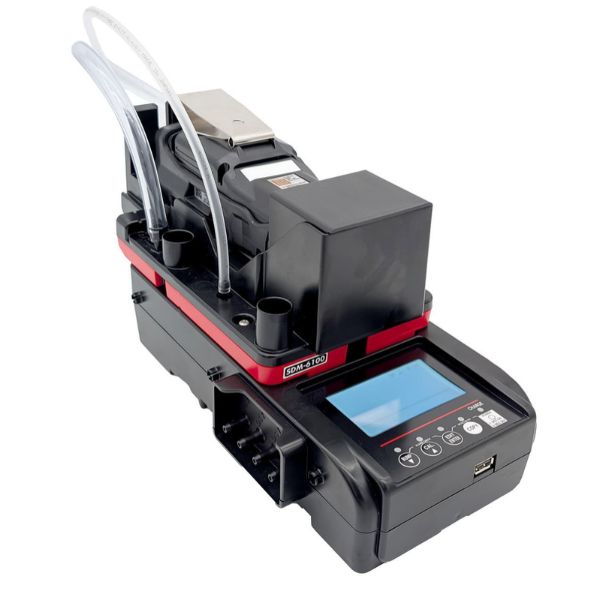

RKI SDM-6100 Calibration Station for GX-6100 Gas Monitors

The RKI SDM-6100 Calibration Station is designed to support calibration and instrument management for the RKI GX-6100 gas monitor. Available in multiple configurations, the SDM-6100 can be ordered as a standalone calibration station package or as a more complete setup with demand flow regulators, calibration tubing, calibration gas cylinders, and cylinder holders.

Select the configuration that best matches your calibration requirements. Package contents vary significantly by part number, including options for standard multi-gas calibration, isobutylene calibration, and configurations equipped for both standard calibration gas and high-concentration methane.

Available SDM-6100 Configurations

81-SDM6100-01 – SDM-6100 Calibration Station

A base SDM-6100 package with the primary station accessories required for setup and connectivity.

• SDM-6100 calibration station
• Filter
• AC adapter
• Exhaust tube
• Flash drive
• USB cable
• LAN cable

81-SDM6100-03 – Calibration Station with Demand Flow Regulator

This configuration adds a demand flow regulator and calibration gas tubing for users who need the gas-delivery components in addition to the calibration station.

• SDM-6100 calibration station
• Particle filter
• AC adapter
• 10 ft. exhaust tubing
• USB drive
• USB cable
• LAN cable
• Demand flow regulator
• Calibration gas tubing

81-SDM6100-04 – Calibration Station with 58AL Multi-Gas Cylinder

A more complete calibration package that adds a demand flow regulator, calibration tubing, multi-gas calibration cylinder, and cylinder holder.

• SDM-6100 calibration station
• Particle filter
• AC adapter
• 10 ft. exhaust tubing
• USB drive
• USB cable
• LAN cable
• Demand flow regulator
• Calibration gas tubing
• 58AL cylinder with H2S / CO / CH4 / O2
• Cylinder holder

81-SDM6100-06 – Calibration Station with 34AL Isobutylene/Air Cylinder

This configuration includes a 34AL isobutylene/air cylinder along with the regulator and gas-delivery accessories required for the package.

• SDM-6100 calibration station
• Particle filter
• AC adapter
• 10 ft. exhaust tubing
• USB drive
• USB cable
• LAN cable
• Demand flow regulator
• Calibration gas tubing
• 34AL isobutylene/air cylinder
• Cylinder holder

81-SDM6100-07 – Calibration Station with 34L Multi-Gas Cylinder

This package combines the SDM-6100 with a compact 34L H2S / CO / CH4 / O2 calibration gas cylinder and the associated regulator, tubing, and cylinder holder.

• SDM-6100 calibration station
• Particle filter
• AC adapter
• 10 ft. exhaust tubing
• USB drive
• USB cable
• LAN cable
• Demand flow regulator
• Calibration gas tubing
• 34L cylinder with H2S / CO / CH4 / O2
• Cylinder holder

81-SDM6100-14 – Calibration Station with Two Gas Cylinders & Regulators

The 81-SDM6100-14 is the most extensively equipped configuration listed here, providing two calibration gas cylinders, two demand flow regulators, two cylinder holders, and two sections of calibration tubing.

• SDM-6100 calibration station
• Filter
• AC adapter
• Exhaust tube
• Two 3 ft. sections of calibration kit polyurethane tubing
• Flash drive
• USB cable
• LAN cable
• 34L cylinder with CH4 at 50% volume in N2
• 34AL cylinder with H2S 25 ppm / CO 50 ppm / CH4 50% LEL / O2 12% in N2
• Two demand flow regulators
• Two cylinder holders

Configuration Comparison

Part Number	Regulator	Calibration Gas	Cylinder Holder
81-SDM6100-01	Not Included	Not Included	Not Included
81-SDM6100-03	1 Demand Flow	Not Included	Not Included
81-SDM6100-04	1 Demand Flow	58AL H2S / CO / CH4 / O2	1 Included
81-SDM6100-06	1 Demand Flow	34AL Isobutylene / Air	1 Included
81-SDM6100-07	1 Demand Flow	34L H2S / CO / CH4 / O2	1 Included
81-SDM6100-14	2 Demand Flow	34L CH4 50% Vol. in N2 + 34AL Multi-Gas	2 Included

Calibration Gas Options

Several SDM-6100 packages include calibration gas so the station can be matched more closely to the GX-6100 sensor configuration being serviced. Available packages include H2S / CO / CH4 / O2 multi-gas mixtures, isobutylene/air, and a dual-cylinder configuration for applications requiring both standard multi-gas calibration and 50% volume methane in nitrogen.

Connectivity & Data Accessories

All of the listed SDM-6100 configurations include USB and LAN connectivity accessories along with a USB or flash drive. This provides the supporting hardware supplied with the station for instrument and data-management workflows.

Choose the Correct SDM-6100 Configuration

The correct SDM-6100 package depends on the GX-6100 configuration being supported and which calibration accessories are already available at your facility. Users who already have compatible calibration gas and regulators may prefer the base station or regulator-equipped package, while the cylinder-equipped configurations provide additional calibration components in a single package.

Review the configuration part number and included components carefully before ordering, particularly when selecting between the multi-gas, isobutylene, and dual-cylinder packages.
