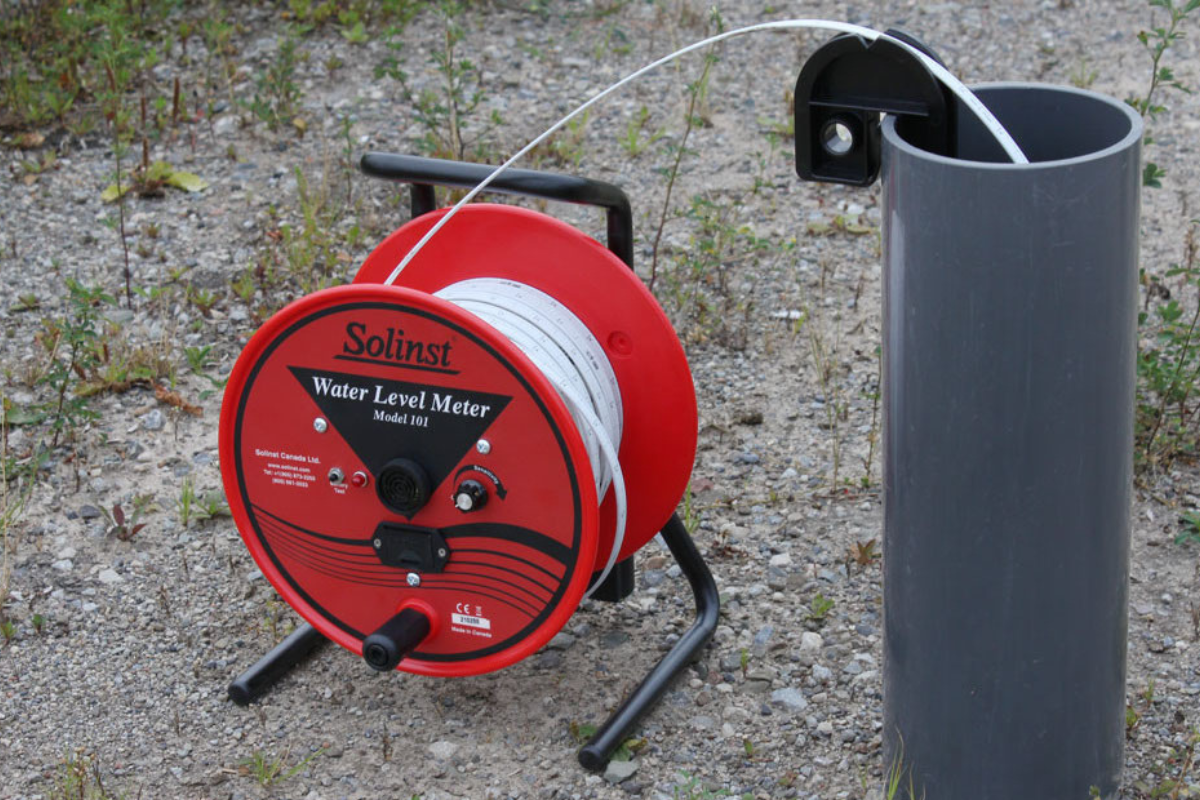

Solinst Model 101 P7 Water Level Meter
The Solinst Model 101 P7 Water Level Meter is a portable instrument for manually measuring depth to water in wells, boreholes, standpipes, and tanks. It combines a submersible P7 probe with permanently laser-marked PVDF flat tape. An audible buzzer and indicator light signal when the probe contacts water, allowing the operator to read the depth at an established measurement reference point.
Activated Carbon Depot offers imperial configurations from 100 to 2,000 feet and metric configurations from 30 to 600 meters. Select your required length and units from the product options above. The configuration tables below identify the corresponding part numbers.
P7 Submersible Probe
The P7 probe features a sensor at its tip for consistent water detection with minimal displacement. Its corrosion-resistant construction supports repeated field use, while adjustable sensitivity helps operators obtain a clear signal in different water conductivity conditions and manage readings in cascading water.
- Probe diameter: 5/8 in. (16 mm)
- Probe length: 5.38 in. (137 mm)
- Probe weight: approximately 4.5 oz. (128 g)
- Audible and visual indication of contact with water
- Submersible design for depth-to-water measurements
The P7 can also be used to measure total well depth under ideal conditions. Sediment, obstructions, and well construction may affect this measurement. Follow Solinst’s operating instructions and avoid forcing the probe past an obstruction.
Laser-Marked PVDF Flat Tape
The Model 101 P7 uses durable 3/8 in. (10 mm) PVDF flat tape with permanent laser markings. Imperial configurations are marked every 1/100 ft., while metric configurations are marked every millimeter. These graduations describe the spacing of the tape markings.
The tape’s dog-bone profile helps reduce adherence to wet surfaces and allows it to hang straight during use. Stainless steel and copper-coated steel conductors provide strength and electrical continuity. The tape is traceable to NIST and EU measurement standards and can be spliced or repaired according to the applicable Solinst instructions.
Manual Water Level Measurement

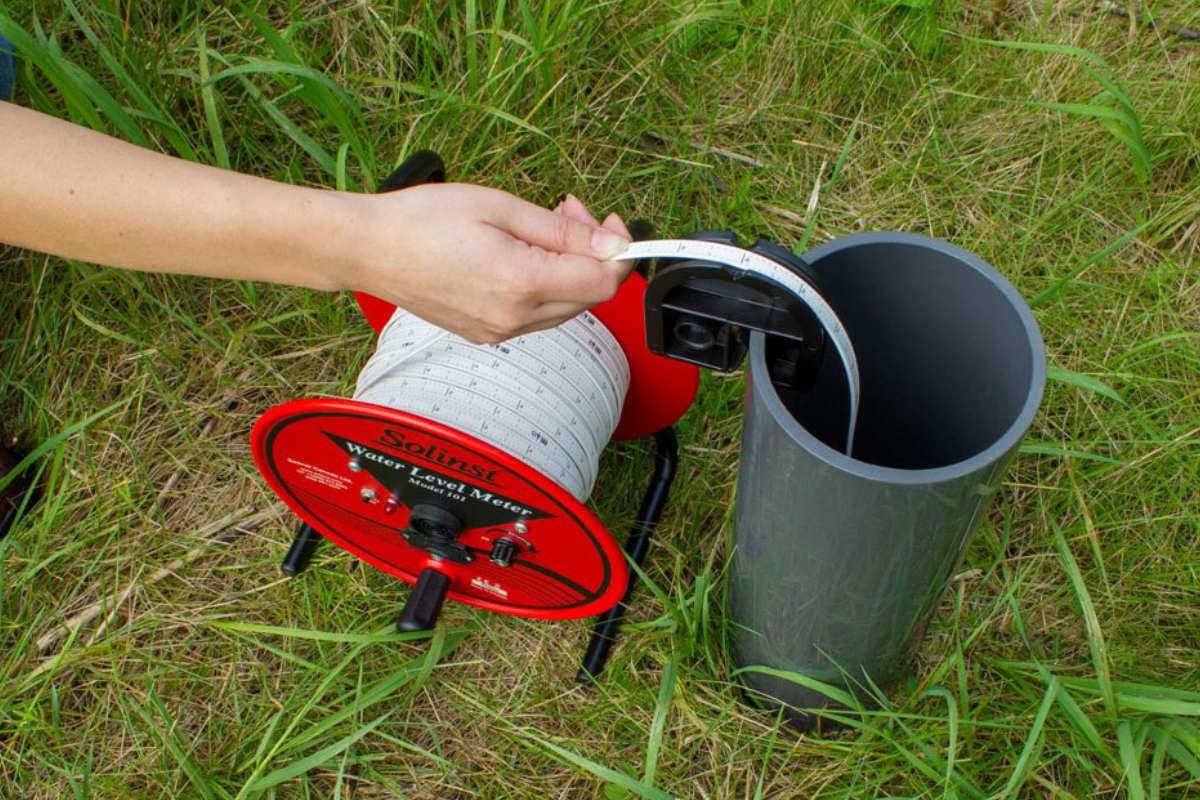

Lower the probe until the buzzer and light indicate contact with water, then read the tape at your reference point. Use a consistent reference point for repeat measurements and follow the manufacturer’s guidance for the tape guide and any required measurement correction.
The 101 P7 is suitable for routine groundwater monitoring, environmental site investigations, hydrogeological studies, and well development activities. It does not automatically record readings over time or measure water temperature, conductivity, or oil-water interfaces.
Selecting Your Configuration
Choose a tape long enough to reach the deepest expected water level, allowing for anticipated water-level changes. Confirm that the 16 mm probe can pass through the available opening and around installed pumps, tubing, or other equipment.
Review the specifications, length options, and frequently asked questions below before ordering.
Need Help Selecting Your Meter?
Contact Activated Carbon Depot with your expected depth to water, well opening, required units, and preferred tape length. For replacement parts, include your model and existing part number.
Call 949-229-2587, email sales@activatedcarbondepot.com, or use our contact form.
Solinst 101 P7 Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Solinst |
| Model and Probe | Model 101 Water Level Meter with P7 probe |
| Primary Measurement | Manual depth-to-water measurement in wells, boreholes, standpipes, and tanks |
| Tape Material | PVDF flat tape with permanent laser markings |
| Tape Width | 3/8 in. (10 mm) |
| Imperial Tape Graduations | Every 1/100 ft. |
| Metric Tape Graduations | Every millimeter |
| P7 Probe Diameter | 5/8 in. (16 mm) |
| P7 Probe Length | 5.38 in. (137 mm) |
| P7 Probe Weight | Approximately 4.5 oz. (128 g) |
| Water Detection | Audible buzzer and indicator light signal contact with water |
| Sensitivity Control | Adjustable for different water conductivity conditions |
| Power Source | 9V battery |
| Total Well Depth | Can be measured under ideal conditions; follow Solinst operating instructions |
Tape graduations indicate the spacing of the markings. They should not be interpreted as a separate guarantee of overall measurement accuracy under every field condition.
Available Tape Lengths and Part Numbers
Select the required length and measurement units from the product options above. Imperial and metric tapes are separate configurations. The following lists the configurations offered on this page; price and availability depend on the selected option.
Imperial Configurations
| Tape Length | Part Number |
|---|---|
| 100 ft. | 110146 |
| 200 ft. | 110185 |
| 300 ft. | 110186 |
| 500 ft. | 110187 |
| 750 ft. | 110188 |
| 1,000 ft. | 110189 |
| 1,250 ft. | 110694 |
| 1,650 ft. — SC3300 reel | 114312 |
| 2,000 ft. — SC3300 reel | 114313 |
Metric Configurations
| Tape Length | Part Number |
|---|---|
| 30 m | 110190 |
| 60 m | 110191 |
| 100 m | 110192 |
| 150 m | 110193 |
| 250 m | 110194 |
| 300 m | 110195 |
| 400 m | 110875 |
| 500 m — SC3300 reel | 114309 |
| 600 m — SC3300 reel | 114310 |
Choosing the Right Solinst 101 P7 Configuration
Choose a tape long enough to reach the deepest expected water level from your measurement reference point, allowing for anticipated changes in water level. If you also intend to measure total well depth, consider the full well depth and whether conditions permit this measurement.
Confirm that the 16 mm probe can pass through the available opening and around any installed equipment. Probe diameter alone does not guarantee access where pumps, tubing, or other obstructions are present.
Choose imperial or metric markings to match your reporting requirements. For replacement equipment, confirm the model, tape type, units, and part number before ordering.
Solinst 101 P7 Frequently Asked Questions
The Solinst 101 P7 measures depth to water manually. Lower the probe into the well until the buzzer and indicator light signal contact with water, then read the tape at the established measurement reference point.
The Model 101 P7 uses laser-marked PVDF flat tape. Confirm the exact model and tape configuration when purchasing a meter or replacement tape.
Yes. This page offers separate metric configurations with markings every millimeter, alongside imperial configurations marked every 1/100 ft. Select the required units and length before adding the meter to your cart.
Solinst describes the P7 probe as capable of measuring total well depth under ideal conditions. Obstructions, sediment, and well construction can affect this measurement. Follow the manufacturer’s instructions and avoid forcing the probe past an obstruction.
No. The 101 P7 is a manual instrument. For unattended measurements over time, consider a suitable water level datalogger from our Solinst equipment collection.
No. A carrying case is sold separately. Your purchase includes the assembled Solinst 101 P7 meter, a 9V battery, and tape guide. Contact Activated Carbon Depot for help selecting a case compatible with your reel size.
Match replacement parts to your meter model, probe, tape type, length, units, and reel configuration. Do not assume that every Solinst probe or tape fits every meter. Contact us with your existing instrument details for help selecting the correct part.
Need Help Selecting Your Meter?
Contact Activated Carbon Depot with your expected depth to water, well opening, required units, and preferred tape length. For replacement parts, include your model and existing part number.
What’s Included with the Solinst 101 P7?
Your selected Solinst Model 101 P7 configuration includes:
- Assembled water level meter with reel, P7 probe, and laser-marked PVDF flat tape in your selected length and units
- 9V battery
- Tape guide
A carrying case is sold separately. Contact Activated Carbon Depot for help selecting a case compatible with your meter’s reel size.
Is the Solinst 101 P7 Right for Your Project?
Choose the Solinst 101 P7 when you need manual depth-to-water measurements using laser-marked PVDF flat tape and a submersible P7 probe. Before ordering, confirm your required tape length, measurement units, and available access around pumps, tubing, or other equipment.
If your project has different measurement requirements, compare these Solinst models:
| Model | When to Consider It |
|---|---|
| Solinst 101 P7 | Manual depth-to-water measurement with PVDF flat tape and a submersible P7 probe. |
| Solinst 101 P2 Water Level Meter | An alternative Model 101 configuration using polyethylene flat tape and a P2 probe. Compare probe and tape specifications before selecting your configuration. |
| Solinst 102 P10 Water Level Meter | Depth-to-water measurement where a narrow cable and smaller probe may better suit the available access. |
| Solinst 101D Water Level DrawDown Meter | Projects requiring both water-level and drawdown detection modes. |
Probe dimensions, access restrictions, and measurement requirements should guide your selection. Contact Activated Carbon Depot if you need help comparing configurations.
