Solinst Model 103 Tag Line Series – Well Depth & Installation Measuring Line

Solinst Model 103 Tag Line Series

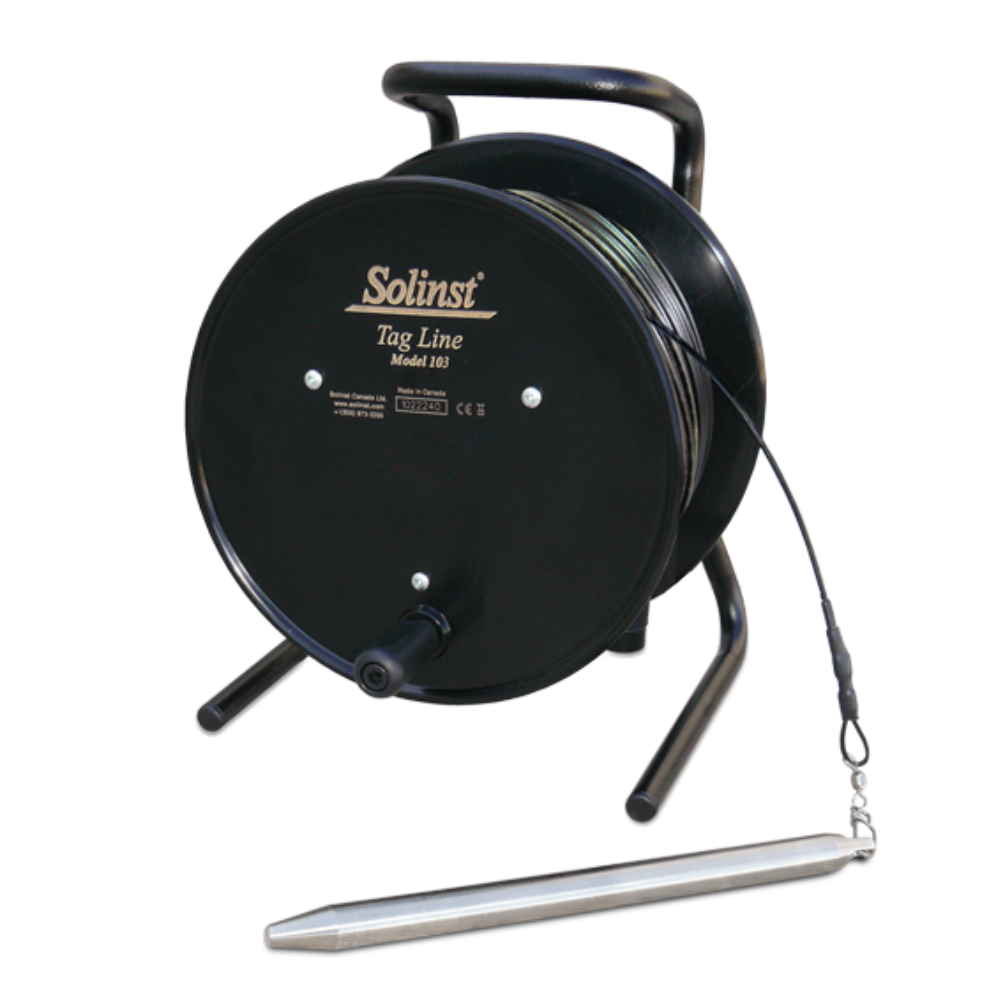

The Solinst Model 103 Tag Line is a durable, accurately marked measuring line designed primarily for monitoring well installation, well construction, and total well depth measurements. Using a removable stainless steel tag weight attached to a laser-marked cable, the Model 103 provides a simple way to measure depths during well completion and can also serve as a marked support line for deploying groundwater equipment.

The Tag Line is particularly useful during monitoring well construction, where installers need to accurately determine the depth to the top of backfill sand, bentonite, or other well construction materials. Standard cable lengths range from 100 ft. to 1,000 ft. (30 m to 300 m), with other lengths available by request.

Designed for Monitoring Well Installation

The Solinst Model 103 provides well drillers, environmental professionals, hydrogeologists, and groundwater technicians with a straightforward method for measuring depths throughout the well installation process.

During well completion, the weighted cable can be lowered into the well to determine the depth to the top of backfill materials such as sand or bentonite. The Model 103 can also be used to determine total well depth.

• Measure depth to backfill during monitoring well construction
• Measure depth to sand and bentonite layers
• Determine total well depth
• Use as a marked support line for compatible downhole equipment
• Suitable for routine groundwater and environmental field work

Laser-Marked Stainless Steel Wireline

The Model 103 uses durable 1/16 in. (1.6 mm) stranded stainless steel wireline with a polyethylene coating. The wireline has a minimum break strength of 270 lbs. (122 kg), providing the strength required for demanding field applications.

Measurement markings are permanently laser etched onto the cable every 1/4 ft. or every 5 cm. The laser-marked design allows the cable to run smoothly over the Tape Guide while providing clear depth measurements in the field.

• Wireline Diameter: 1/16 in. (1.6 mm)
• Construction: Polyethylene-coated stranded stainless steel
• Minimum Break Strength: 270 lbs. (122 kg)
• Imperial Markings: Every 1/4 ft.
• Metric Markings: Every 5 cm
• Standard Lengths: 100 ft. to 1,000 ft. (30 m to 300 m)
• Other lengths available by request

Standard Stainless Steel Tag Weight

The standard Model 103 stainless steel tag weighs 1.5 lbs. (0.68 kg) and measures 3/4 in. x 1 ft. (19 mm x 30 cm). Its tapered design helps minimize hang-ups as the tag is lowered into and retrieved from a well.

• Standard Tag Weight: 1.5 lbs. (0.68 kg)
• Standard Tag Size: 3/4 in. x 1 ft. (19 mm x 30 cm)
• Stainless steel construction
• Tapered ends help minimize hang-ups
• Tag can be clipped on and off the measuring line

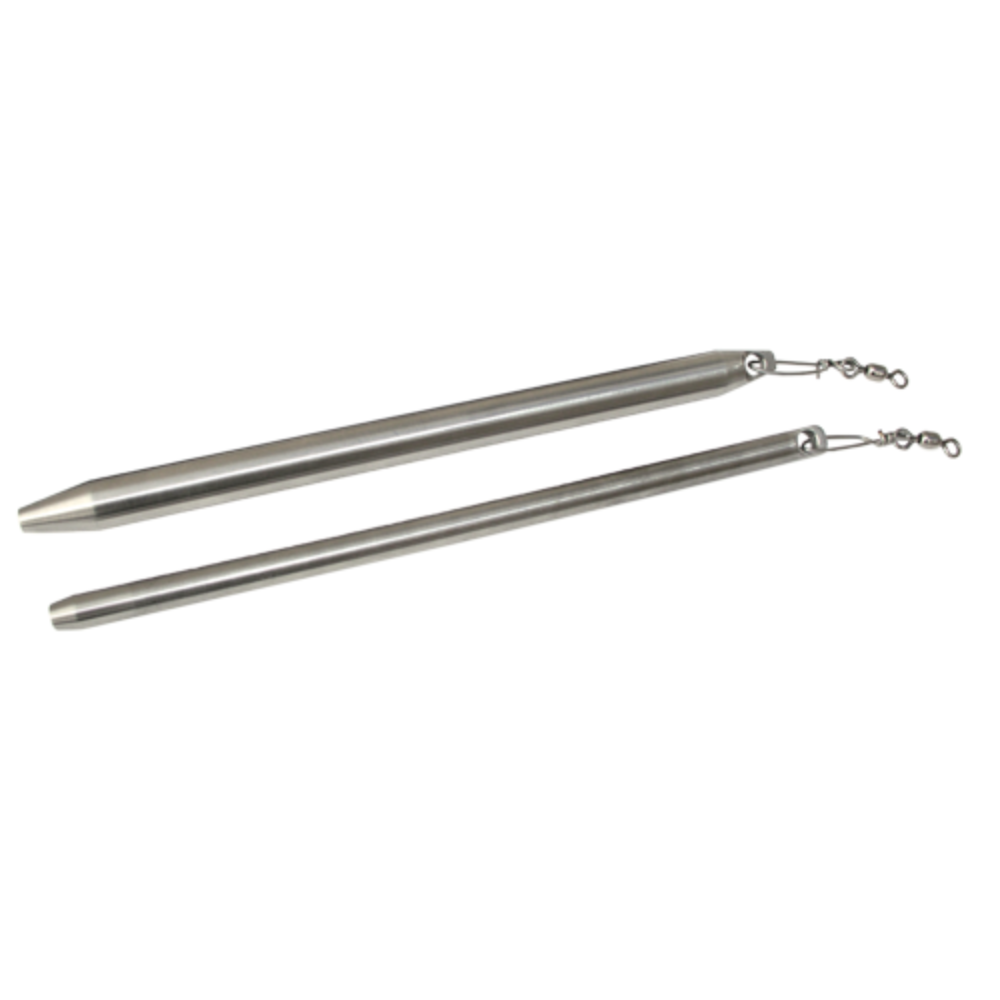

Optional Narrow Tag Weight

For applications requiring a smaller-diameter weight, a narrow stainless steel tag is also available. The optional narrow tag measures 1/2 in. x 1 ft. (13 mm x 30 cm) and weighs 0.65 lbs. (0.30 kg).

The removable tag design allows the reel-mounted marked cable or tape to be used for additional field applications when the tag weight is not required.

Multi-Purpose Marked Support Line

Beyond well construction measurements, the Solinst Model 103 can be used as a measured safety support line when deploying compatible groundwater equipment. The durable wireline and permanent depth markings allow operators to monitor deployment depth while supporting equipment within the well.

Key Features & Benefits

• Designed for monitoring well installation and construction
• Provides a simple method for measuring total well depth
• Measures depth to backfill sand and bentonite layers
• Durable polyethylene-coated stainless steel wireline
• Minimum wireline break strength of 270 lbs. (122 kg)
• Permanent laser markings every 1/4 ft. or 5 cm
• Standard lengths from 100 ft. to 1,000 ft. (30 m to 300 m)
• Additional lengths available by request
• Removable stainless steel tag weight
• Tapered tag design helps reduce hang-ups
• Can serve as a measured support line for compatible downhole equipment
• Sturdy free-standing reel
• Integrated carrying handle
• Weight holder and reel brake

Common Applications

• Monitoring well installation
• Monitoring well construction
• Measuring total well depth
• Measuring depth to backfill materials
• Measuring sand and bentonite placement
• Groundwater monitoring projects
• Environmental field investigations
• Measured support line for pumps
• Measured support line for bailers
• Measured support line for samplers
• Measured support line for packers

Reliable Depth Measurement During Well Construction

The Solinst Model 103 Tag Line provides a durable and practical solution for measuring well depth and monitoring material placement during well construction. Its laser-marked stainless steel wireline, removable tag weight, sturdy field reel, and multiple available lengths make it a versatile tool for well drillers, hydrogeologists, environmental consultants, and groundwater professionals.
