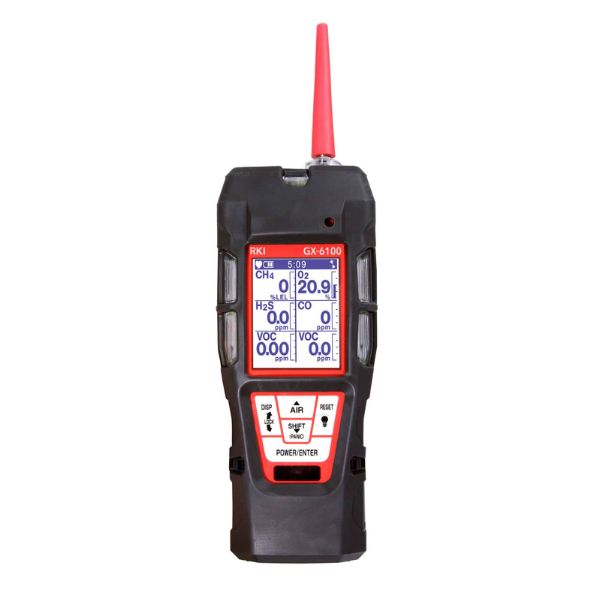

RKI GX-6100 6-Gas Monitor – LEL, O2, H2S, CO, SO2 & VOC 0-4,000 ppm PID – 72-61ABIX-C

RKI GX-6100 6-Gas Monitor – LEL, O2, H2S, CO, SO2 & VOC 0-4,000 ppm PID – 72-61ABIX-C

The RKI GX-6100 72-61ABIX-C is a portable sample-draw multi-gas detector configured for simultaneous monitoring of combustible gas (LEL), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO), sulfur dioxide (SO2), and volatile organic compounds (VOCs). The PID provides a VOC measurement range of 0–4,000 ppm, expanding the instrument beyond conventional four-gas monitoring for industrial, environmental, and occupational safety applications.

This configuration includes a rechargeable Li-Ion battery pack and 115 VAC charger. By combining six gas measurements in one GX-6100 platform, the 72-61ABIX-C is well suited for applications where conventional atmospheric hazards, sulfur dioxide, and VOCs may need to be evaluated with a single portable instrument.

6-Gas Monitoring with VOC & SO2 Detection

The 72-61ABIX-C combines standard four-gas monitoring with dedicated SO2 and PID-based VOC detection.

• Combustible Gas: LEL
• Oxygen: O2
• Hydrogen Sulfide: H2S
• Carbon Monoxide: CO
• Volatile Organic Compounds: 0–4,000 ppm PID
• Sulfur Dioxide: SO2

0–4,000 ppm PID VOC Monitoring

A key feature of this GX-6100 configuration is its PID channel for measuring volatile organic compounds from 0–4,000 ppm. Adding broad-range VOC detection allows the instrument to be used for applications where organic vapors may be present alongside combustible gases, toxic gases, and oxygen-deficient or oxygen-enriched atmospheres.

The PID capability makes the 72-61ABIX-C particularly useful for industrial hygiene, environmental investigations, remediation projects, hazardous material response, leak investigations, and other applications where VOC concentrations need to be screened or monitored.

Dedicated Sulfur Dioxide Monitoring

In addition to LEL, O2, H2S, CO, and VOC measurements, this configuration includes an SO2 sensor for sulfur dioxide monitoring. The additional toxic gas channel expands the GX-6100's capabilities for industrial and occupational environments where sulfur dioxide may be a potential atmospheric hazard.

Internal Sample Draw Pump

The GX-6100 is a sample-draw gas detector with an internal pump, allowing atmospheric samples to be drawn into the instrument from a specific location. Pumped sampling is useful for pre-entry testing, confined spaces, tanks, vessels, process areas, environmental investigations, and other applications where remote atmospheric measurements are required.

Rechargeable Li-Ion Battery & 115 VAC Charger

Part number 72-61ABIX-C includes a rechargeable Li-Ion battery pack and 115 VAC charger for convenient portable operation and recharging between monitoring sessions.

• Rechargeable Li-Ion battery pack included
• 115 VAC charger included
• Portable configuration for field and facility monitoring
• Designed for repeated professional gas measurements

One Instrument for Multiple Atmospheric Hazards

The combination of LEL, O2, H2S, CO, SO2, and VOC monitoring allows the 72-61ABIX-C to address a broader range of atmospheric hazards than a conventional four-gas detector. This can help reduce the need to carry separate instruments when both VOC and sulfur dioxide monitoring are required as part of the same application.

Key Features & Benefits

• Six-gas monitoring configuration
• Monitors LEL, O2, H2S, CO, SO2, and VOCs
• 0–4,000 ppm PID VOC measurement range
• Dedicated sulfur dioxide monitoring
• Combines standard four-gas detection with VOC and SO2 monitoring
• Internal sample draw pump
• Suitable for remote atmospheric sampling
• Rechargeable Li-Ion battery pack included
• 115 VAC charger included
• Portable GX-6100 platform
• Designed for industrial, occupational, and environmental monitoring

Common Applications

• Industrial hygiene monitoring
• VOC monitoring
• Sulfur dioxide monitoring
• Confined space atmospheric testing
• Pre-entry gas testing
• Environmental site investigations
• Environmental remediation
• Hazardous material response
• Industrial atmospheric monitoring
• Leak investigations
• Workplace exposure monitoring
• Process and facility safety monitoring

Expanded Multi-Gas, VOC & SO2 Monitoring

The RKI GX-6100 72-61ABIX-C provides a versatile solution for professionals who need more than conventional four-gas detection. By combining LEL, O2, H2S, and CO with an additional SO2 channel and 0–4,000 ppm PID VOC measurement capability, this configuration can monitor a diverse range of atmospheric hazards with one portable sample-draw instrument.

With its rechargeable Li-Ion battery pack and included 115 VAC charger, the 72-61ABIX-C is configured for professional industrial safety, environmental monitoring, industrial hygiene, and field gas detection applications.
