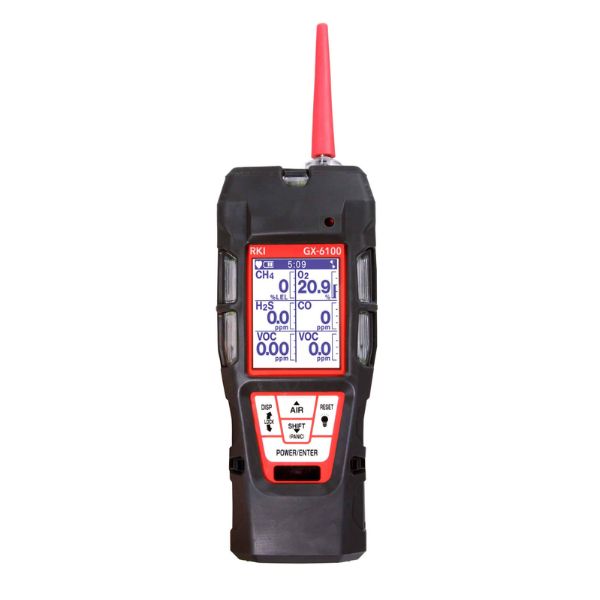

RKI GX-6100 5-Gas Monitor – LEL, O2, H2S, CO & VOC 0-4,000 ppm 10.6 eV PID – 72-61ABXX-C

RKI GX-6100 5-Gas Monitor – LEL, O2, H2S, CO & VOC 0-4,000 ppm 10.6 eV PID – 72-61ABXX-C

The RKI GX-6100 72-61ABXX-C is a portable sample-draw multi-gas detector configured for simultaneous monitoring of combustible gas (LEL), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO), and volatile organic compounds (VOCs). This configuration features a 10.6 eV photoionization detector (PID) lamp with a VOC measurement range of 0–4,000 ppm and includes a rechargeable Li-Ion battery pack and 115 VAC charger.

By combining standard confined-space gas monitoring with broad-range VOC detection, the GX-6100 provides expanded atmospheric monitoring capability in a single portable instrument. It is well suited for industrial hygiene, confined space entry, environmental investigations, remediation projects, leak investigations, hazardous material response, and other applications where both common atmospheric hazards and VOCs need to be monitored.

5-Gas Monitoring with 0–4,000 ppm VOC Detection

This GX-6100 configuration combines four common atmospheric gas measurements with a 10.6 eV PID for volatile organic compound monitoring.

• Combustible Gas: LEL
• Oxygen: O2
• Hydrogen Sulfide: H2S
• Carbon Monoxide: CO
• Volatile Organic Compounds: 0–4,000 ppm
• PID Lamp: 10.6 eV

10.6 eV PID for VOC Monitoring

A key feature of the 72-61ABXX-C configuration is its 10.6 eV photoionization detector. The PID provides a VOC measurement range of 0–4,000 ppm, adding volatile organic compound detection to the GX-6100's LEL, O2, H2S, and CO monitoring capabilities.

This expanded configuration is particularly useful for applications where VOC exposure or contamination may be present alongside conventional confined-space atmospheric hazards.

Internal Sample Draw Pump

The GX-6100 uses an internal sample draw pump for remote atmospheric sampling. Pumped operation allows technicians to draw samples from confined spaces, tanks, vessels, manholes, remediation areas, and other locations where atmospheric conditions need to be evaluated remotely.

The sample-draw design is also useful for environmental and industrial investigations where gas and VOC measurements need to be collected from specific locations.

Rechargeable Li-Ion Battery & 115 VAC Charger

Part number 72-61ABXX-C includes a rechargeable Li-Ion battery pack and 115 VAC charger, providing a convenient power configuration for routine professional field use.

• Rechargeable Li-Ion battery pack
• 115 VAC charger included
• Portable configuration for field monitoring
• Designed for repeated industrial and environmental use

Rugged GX-6100 Multi-Gas Platform

The GX-6100 is designed as a professional multi-gas monitoring platform for demanding industrial, safety, and environmental applications. Its portable construction combines an internal sampling pump, digital gas display, multiple alarm functions, datalogging capabilities, and communication features in one field-ready instrument.

Audible & Visual Alarm System

The GX-6100 incorporates multiple alarm and instrument-status functions to help operators quickly identify hazardous atmospheric conditions and changes in instrument operation.

• Audible gas alarms
• Visual alarm indicators
• Man-down alarm
• Panic alarm
• Low-flow indication
• Low-battery warning
• Sensor and instrument status alerts

Data & Communication Features

The GX-6100 provides digital gas concentration readings along with data management and communication capabilities for professional gas monitoring programs.

• Digital gas concentration display
• Datalogging capability
• Snap logging capability
• Bluetooth communication
• IrDA communication
• Field-oriented user interface

Key Features & Benefits

• Monitors LEL, O2, H2S, CO, and VOCs
• VOC measurement range of 0–4,000 ppm
• 10.6 eV PID lamp for VOC detection
• Combines standard 4-gas monitoring with VOC detection
• Internal sample draw pump
• Suitable for remote atmospheric sampling
• Rechargeable Li-Ion battery pack
• 115 VAC charger included
• Portable multi-gas monitoring platform
• Audible and visual alarm functions
• Man-down and panic alarm functions
• Datalogging capabilities
• Bluetooth and IrDA communication
• Designed for industrial, safety, and environmental monitoring

Common Applications

• VOC monitoring
• Confined space entry
• Industrial hygiene monitoring
• Environmental site investigations
• Environmental remediation
• Hazardous material response
• Pre-entry atmospheric testing
• Leak investigations
• Industrial gas monitoring
• Tank and vessel monitoring
• Contaminated site investigations
• Workplace atmospheric monitoring

4-Gas Monitoring Plus 10.6 eV PID VOC Detection

The RKI GX-6100 72-61ABXX-C expands traditional four-gas monitoring by adding a 10.6 eV PID capable of measuring VOC concentrations from 0–4,000 ppm. This allows safety and environmental professionals to monitor LEL, O2, H2S, CO, and VOCs with a single portable sample-draw instrument.

For applications involving both conventional atmospheric hazards and potential volatile organic compound exposure, this GX-6100 configuration provides a versatile solution for industrial safety, environmental monitoring, remediation, confined-space testing, and VOC detection.
