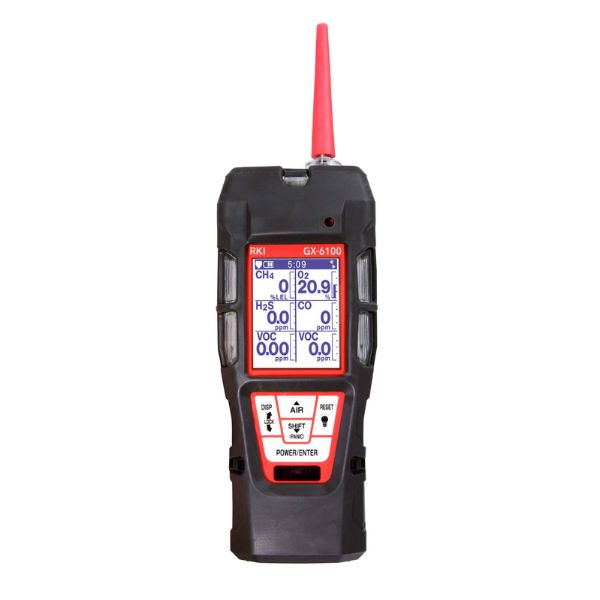

RKI GX-6100 5-Gas Monitor – LEL, O2, H2S, CO & TC % Vol. – 72-61AXXT-C

RKI GX-6100 5-Gas Monitor – LEL, O2, H2S, CO & TC % Vol. – 72-61AXXT-C

The RKI GX-6100 72-61AXXT-C is a portable sample-draw multi-gas detector configured to simultaneously monitor combustible gas (LEL), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO), and combustible gas in % volume using a thermal conductivity (TC) sensor. This configuration includes a rechargeable Li-Ion battery pack and 115 VAC charger.

Designed for applications requiring gas measurements beyond the standard four-gas configuration, the GX-6100 combines LEL and % volume combustible gas detection with O2, H2S, and CO monitoring in one rugged field instrument. Its internal sample pump makes it suitable for remote sampling, confined space testing, industrial safety, environmental work, and applications where combustible gas concentrations may extend beyond the LEL range.

5-Gas Monitoring Configuration

This GX-6100 configuration provides simultaneous monitoring of five important gas measurements:

• Combustible Gas: LEL
• Oxygen: O2
• Hydrogen Sulfide: H2S
• Carbon Monoxide: CO
• Combustible Gas: TC % Vol.

LEL & % Volume Combustible Gas Detection

A key advantage of the 72-61AXXT-C configuration is the addition of thermal conductivity (TC) combustible gas measurement in % volume. While the LEL sensor is used for combustible gas monitoring within the lower explosive range, the TC sensor provides measurement capability for higher combustible gas concentrations expressed as percent by volume.

This combination expands the instrument's usefulness for applications where combustible gas concentrations may extend beyond the conventional LEL measurement range.

Internal Sample Draw Pump

The GX-6100 uses an internal sample draw pump to pull atmospheric samples into the instrument for measurement. Pumped sampling is particularly useful when testing confined spaces, tanks, vessels, manholes, wells, and other areas where the atmosphere should be evaluated remotely before personnel approach or enter the space.

Rechargeable Li-Ion Battery & 115 VAC Charger

Part number 72-61AXXT-C is supplied with a rechargeable Li-Ion battery pack and 115 VAC charger, providing a convenient power configuration for routine field and facility use.

• Rechargeable Li-Ion battery pack
• 115 VAC charger
• Designed for extended portable field operation
• Rechargeable configuration reduces dependence on disposable batteries

Rugged GX-6100 Platform

The GX-6100 platform is designed for demanding industrial and environmental monitoring applications. Its portable construction, internal sampling pump, multiple alarm functions, digital display, and field-ready design provide technicians with a versatile instrument for atmospheric testing.

Visual & Audible Alarm System

The GX-6100 incorporates multiple alarm functions to help operators quickly identify hazardous atmospheric conditions and instrument status during field use.

• Audible gas alarms
• Visual alarm indicators
• Man-down alarm
• Panic alarm
• Low-flow indication
• Low-battery warning
• Instrument and sensor status alerts

Digital Display & Data Capabilities

The GX-6100 provides a digital display for monitoring gas concentrations and instrument status. The platform also incorporates data and communication capabilities suitable for professional gas monitoring programs.

• Digital gas concentration display
• Multiple gases displayed for convenient monitoring
• Datalogging capability
• Bluetooth communication
• IrDA communication
• Field-oriented user interface

Key Features & Benefits

• Monitors LEL, O2, H2S, CO, and TC % Vol.
• Combines standard 4-gas monitoring with % volume combustible gas measurement
• Thermal conductivity sensor for combustible gas % volume measurements
• Internal sample draw pump
• Suitable for remote atmospheric sampling
• Rechargeable Li-Ion battery pack
• 115 VAC charger included
• Portable multi-gas monitoring platform
• Audible and visual alarms
• Man-down and panic alarm functions
• Datalogging capabilities
• Bluetooth and IrDA communication
• Designed for industrial and environmental field applications

Common Applications

• Confined space atmospheric testing
• Industrial gas monitoring
• Pre-entry atmospheric testing
• Combustible gas monitoring
• High-concentration combustible gas measurement
• Tank and vessel monitoring
• Hazmat response
• Environmental remediation
• Industrial maintenance
• Leak investigation
• Environmental field monitoring

Expanded Combustible Gas Monitoring

The RKI GX-6100 72-61AXXT-C is an excellent choice for applications requiring the standard LEL, O2, H2S, and CO measurements along with combustible gas measurements in percent volume. By incorporating both LEL and TC % Vol. detection into the GX-6100 platform, this configuration provides expanded monitoring capability for environments where combustible gas concentrations may exceed the conventional LEL measurement range.
