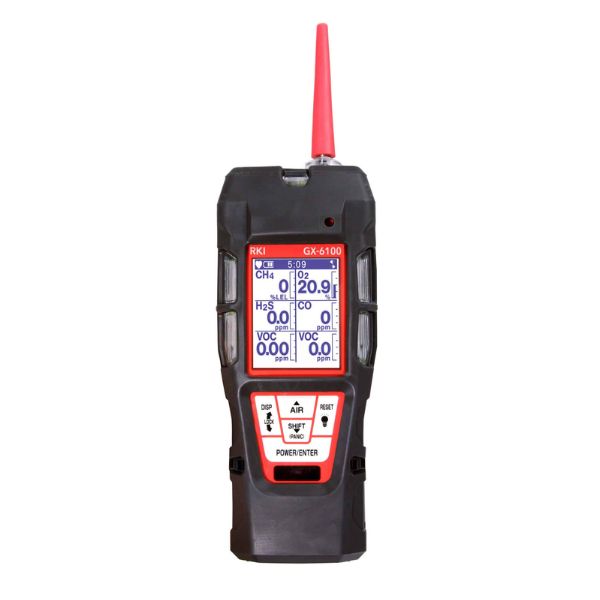

RKI GX-6100 4-Gas Monitor – LEL, O2, H2S & CO – 72-61AXXX-C

RKI GX-6100 4-Gas Monitor – LEL, O2, H2S & CO – 72-61AXXX-C

The RKI GX-6100 72-61AXXX-C is a portable sample-draw multi-gas detector configured for simultaneous monitoring of the four standard confined-space gases: combustible gas (LEL), oxygen (O2), hydrogen sulfide (H2S), and carbon monoxide (CO). This configuration includes a rechargeable Li-Ion battery pack and 115 VAC charger for convenient daily operation and recharging.

Designed as RKI's next-generation multi-gas platform, the GX-6100 combines an internal sample pump, rugged IP-67 construction, long Li-Ion battery runtime, multiple alarm functions, datalogging, and Bluetooth and IrDA communication in a compact field instrument. It is well suited for confined space entry, industrial safety, environmental monitoring, remediation work, leak detection, and other applications requiring pumped 4-gas monitoring.

4-Gas Detection – LEL, O2, H2S & CO

This GX-6100 configuration is equipped to simultaneously monitor combustible gases, oxygen, hydrogen sulfide, and carbon monoxide. These four measurements provide the core gas monitoring capability commonly required for confined space and industrial atmospheric testing.

• Combustible Gas (LEL): 0–100% LEL
• Oxygen (O2): 0–40.0% volume
• Hydrogen Sulfide (H2S): 0–200 ppm
• Carbon Monoxide (CO): 0–2,000 ppm

Internal Sample Draw Pump

The GX-6100 features an integrated sample draw pump for remote atmospheric sampling. The pump operates at approximately 0.45 LPM and supports sample distances up to 100 ft. when used with the appropriate sampling equipment.

This pumped design allows technicians to test the atmosphere of confined spaces, tanks, manholes, remediation areas, and other locations before entering or approaching the monitoring area.

Rechargeable Li-Ion Battery & 115 VAC Charger

Part number 72-61AXXX-C includes the rechargeable Li-Ion battery pack and 115 VAC charger. The GX-6100 provides up to approximately 28 hours of continuous operation using the Li-Ion battery pack, with a complete recharge taking approximately 6 hours.

• Rechargeable Li-Ion battery pack
• 115 VAC charger included
• Up to approximately 28 hours of continuous Li-Ion operation
• Approximately 6-hour complete recharge time

Rugged IP-67 Field Design

The GX-6100 is designed for demanding industrial and environmental field conditions. Its enclosure carries an IP-67 dust and water resistance rating, excluding the sample hose and probe, and the instrument includes a removable impact-resistant rubber boot for additional field protection.

Despite its extensive monitoring capabilities, the GX-6100 remains compact and portable, measuring approximately 2.6 in. wide x 7.9 in. high x 2.2 in. deep and weighing approximately 17.6 oz. (500 g) with the Li-Ion battery pack installed.

Clear Alarms & Safety Features

The GX-6100 incorporates multiple visual, audible, and user-safety features designed to make alarm conditions readily identifiable in demanding work environments.

• 95 dB audible alarm at 1 ft.
• Bright visual alarm LEDs
• Man-down alarm
• Panic alarm
• Low-flow indication
• Low-battery warning
• Sensor connection and circuit error alerts
• Calibration failure indication
• Integrated LED flashlight

Digital Display & Data Features

A digital LCD provides clear gas concentration readings and automatically rotates to improve visibility based on instrument orientation. The GX-6100 also provides peak-bar displays and allows users to customize the order in which gases are shown.

• Digital LCD with automatic backlight
• Automatic display rotation
• Customizable gas display order
• Peak-bar display
• Datalogging capabilities
• Snap logging for on-demand data capture
• User and station ID selection
• Bump and calibration expiration alarms
• Bluetooth communication
• IrDA communication

Key Features & Benefits

• Monitors LEL, O2, H2S, and CO simultaneously
• Internal sample draw pump
• Approximately 0.45 LPM pump flow rate
• Supports remote sampling up to 100 ft. with appropriate sampling equipment
• Up to approximately 28 hours of Li-Ion battery operation
• Includes rechargeable Li-Ion battery pack and 115 VAC charger
• Compact and lightweight portable design
• IP-67 dust and water resistant enclosure
• Man-down and panic alarms
• 95 dB audible alarm
• Automatic rotating LCD display
• Integrated LED flashlight
• Bluetooth and IrDA communication
• Datalogging and snap logging capabilities
• LEL sensor protection mode
• Field-replaceable sensors, batteries, filters, and pump

Common Applications

• Confined space entry
• Industrial atmospheric monitoring
• Pre-entry gas testing
• Hazmat response
• Environmental remediation sites
• Leak detection
• Landfill monitoring
• Tank entry and inspection
• Industrial maintenance and safety programs
• Environmental field monitoring

Professional Pumped 4-Gas Monitoring

The RKI GX-6100 72-61AXXX-C provides the essential LEL, O2, H2S, and CO measurements required for a wide range of industrial and confined-space monitoring applications while incorporating the advanced functionality of the GX-6100 platform. Its internal pump, long-runtime Li-Ion battery, rugged IP-67 construction, multiple alarm systems, datalogging, and wireless connectivity make it a versatile professional gas detector for field and facility safety programs.
