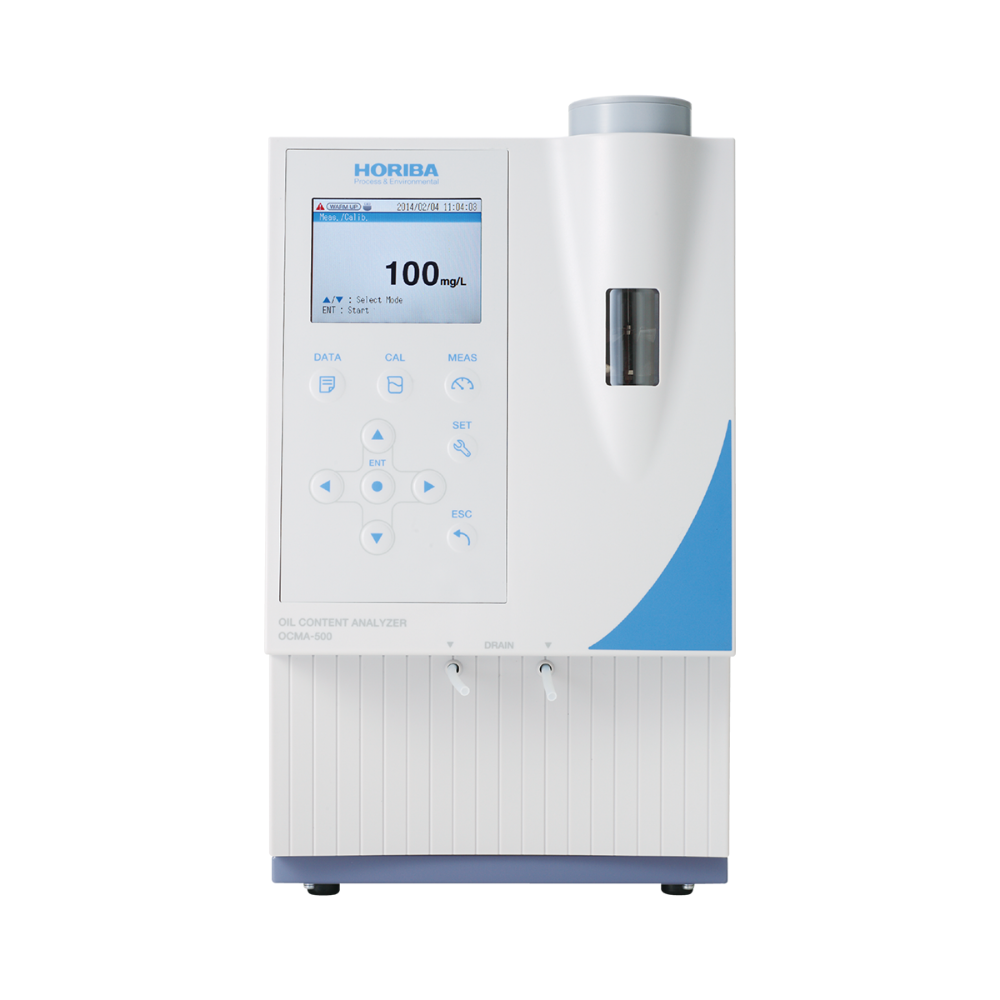

HORIBA OCMA-500 Oil Content Analyzer

HORIBA OCMA-500 Oil Content Analyzer – High-Precision Oil Measurement

The HORIBA OCMA-500 is a high-performance oil content analyzer designed for rapid and accurate oil measurement in wastewater monitoring, quality control, and environmental applications. Utilizing a solvent extraction and non-dispersive infrared absorption analysis method, the OCMA-500 ensures precise detection of oil content without the need for complex evaporation processes.

Key Features:

• Quick and Easy Measurement: One-touch operation provides results in approximately 3 minutes.
• Measures Low-Boiling Point Oils: Unlike n-hexane methods, it prevents volatilization of light oils like gasoline.
• Direct Oil Concentration Display: Displays oil concentration in mg/L without requiring weight-based calculations.
• Environmentally Friendly Solvent: Uses S-316 extraction solvent, which is cost-effective and compliant with environmental regulations.
• High Measurement Accuracy:
  • Measurement Range: 0 mg/L to 200 mg/L.
  • Resolution: 0.1 mg/L for values up to 99.9 mg/L, 1 mg/L for values from 100 to 200 mg/L.
  • Repeatability: ±0.3 mg/L for values up to 9.9 mg/L, ±2.1 mg/L from 10 to 99.9 mg/L, and ±5 mg/L for values above 100 mg/L.
• User-Friendly Display: 3.5-inch backlit color LCD for easy reading and operation.
• Data Storage & Export: Stores up to 300 data sets and supports USB data export.
• Compact & Lightweight: Dimensions: 342 (H) × 200 (W) × 313 (D) mm, Weight: Approx. 7 kg.
• Compliant with ASTM D7066-4 Standards for oil content analysis.

Applications:

• Wastewater Monitoring: Ensures regulatory compliance for industrial discharge and environmental safety.
• Oil Spill & Contamination Testing: Ideal for marine, industrial, and environmental assessments.
• Factory Drainage Control: Monitors oil levels in wastewater and process water.
• Quality Control in Manufacturing: Supports oil contamination detection in components and materials.

The OCMA-500 simplifies oil measurement with a one-button operation, making it an ideal solution for industries needing fast, accurate, and environmentally safe oil content analysis.
